The deep water well drilling rig demonstrates exceptional hydraulic efficiency during outdoor drilling operations, producing a robust water outflow with sustained high-yield performance. Equipped with a heavy-duty centrifugal pump system and optimized bit configuration, the rig achieves remarkable aquifer penetration rates.
During operation, the rig uses rotary or percussive drilling methods to penetrate soil, sediment, and bedrock layers. The drill string, composed of connected rods and a specialized drill bit, is powered by the rig’s hydraulic or mechanical system to create a borehole. Casing pipes are simultaneously installed to stabilize the well structure and prevent collapse. Advanced models may feature automated controls, real-time monitoring systems, and mud pumps to manage cuttings and maintain borehole integrity.
It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields. They are widely used in industrial and agriculture water project, testing well and other exploration borehole.
Feature:
1.The drilling footage is fast and efficient. The automobile chassis is adopted,the layout is reasonable and compact, and the operation is simple.
2.Equipped with hydraulic outriggers for leveling the rig and keeping the machine stable. The main engine is equipped with a high-power diesel engine with strong power to meet work needs.
3.Equipped with hydraulic lifting and lowering composite drill boom, which saves space and provides powerful lifting force for deep hole operations.
4.The drilling rig is equipped with a hydraulic feed system, dual hydraulic motor power heads, chain transmission and hydraulic cylinder propulsion, with large torque and high drilling efficiency.
5.Equipped with quick rod unloading device, which can quickly disassemble the drill rod, saving time and effort.
6.Centralized operating handles, reasonable layout, safe and feasible. Excellent workmanship, durable, and low maintenance costs.
7.Centralized control console is suitable for each manipulation and control.
8.Rapid pulling and enhance the work efficiency.
Products Description

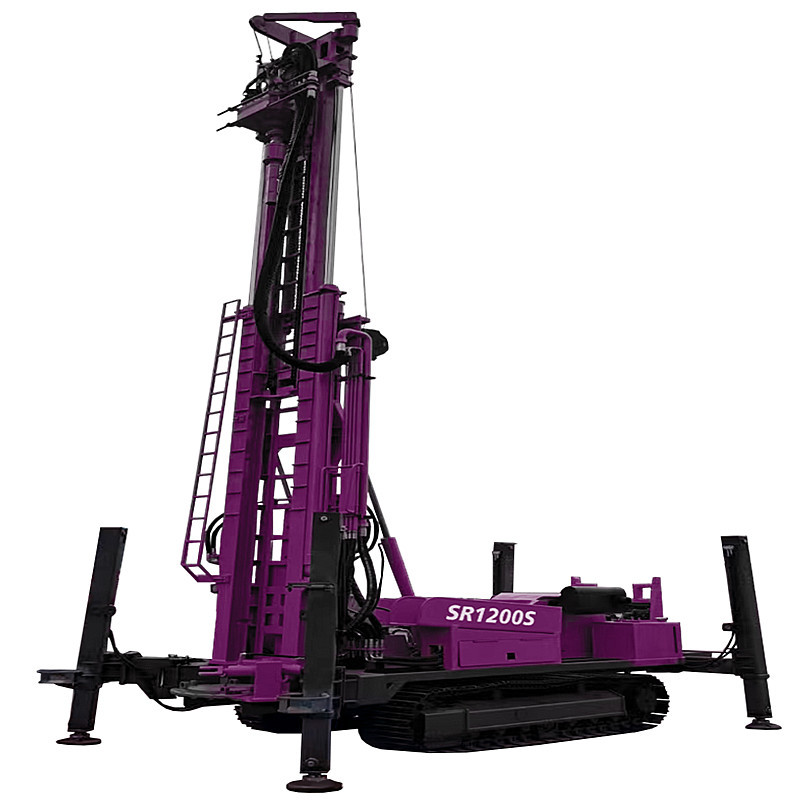

| Product name | Water Well Drilling Rig | | Model | Unit | SR1200S | | Max drilling depth | M | 1200 | | Drilling diameter | mm | 105-900 | | Engine brand | / | Weichai | | Power | kw | 263 | | Rotary motor brand | / | Danfoss | | Pump brand | / | Permco | | Air pressure | Mpa | 1.65-8 | | Air consumption | m³/min | 16-120 | | Drill pipe length | m | 6 | | Drill pipe diameter | mm | 127 | | Axial pressure | T | 10 | | Lifting force | T | 60 | | Fast lifting speed | m/min | 29 | | Fast feeding speed | m/min | 51 | | Max rotary torque | Nm | 24000/12000 | | Max rotary speed | r/min | 75/150 | | Big auxiliary winch lifting force | T | 4 | | Small auxiliary winch lifting force | T | 1.5 | | Jacks stroke | m | 1.7 | | Drilling efficiency | m/h | 10-35 | | Moving speed | Km/h | 6 | | Uphill angle | / | 21° | | Weight | T | 23 | | Dimension | mm | 7000*2250*3000 | | Working condition | / | Unconsolidated formation and stone head | | Drilling method | / | Top drive hydraul ic rotary and pushing, hammer or mud drilling | | Matched DTH hammer | / | Medium and high air pressure series | | Optional accessories | / | Mud pump, Centrifugal pump, Generator, Foam pump | | |
Company Profile
1.What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
