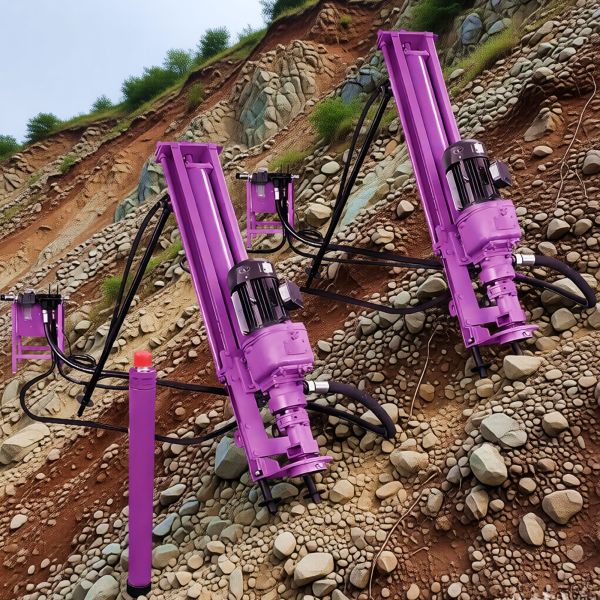

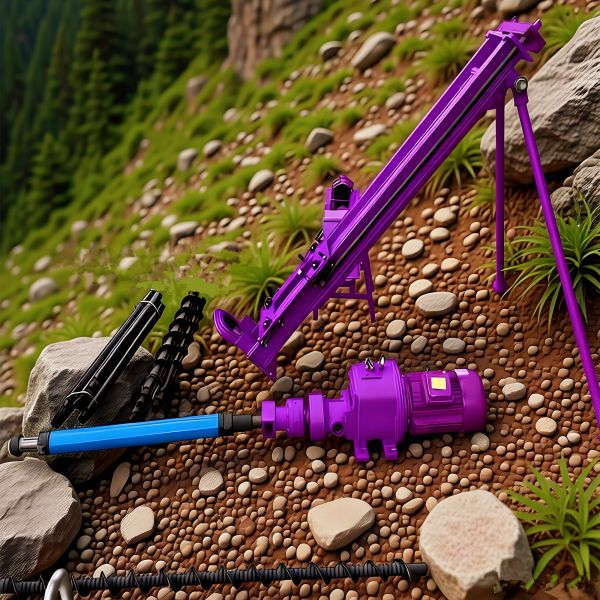

Portable DTH Drilling Rig with Hydraulic Controlling and Light Weight High Drilling Efficiency for Blast Hole Drilling

Name: Portable DTH Drilling Rig with Hydraulic Controlling and Light Weight High Drilling Efficiency for Blast Hole Drilling
Brand: SANROCK
Price: 1 USD

Quality Portable DTH Drilling Rig with Hydraulic Controlling and Light Weight High Drilling Efficiency for Blast Hole Drilling wholesale

Delivery Time : 15-25days

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Motor rate : 15kw

Price : negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,

Supply Ability : 5000Set/Sets per Month

Product name : Drilling Rig

Name : DTH Drilling Rig /Horizontal Directional Drilling Machine

Air consumption : 9-12m/min

Drill rod size : 89*1500mm/76*1500mm

Rotation speed : 0-80rpm

Thruster flip angle : 10°- 360°

Brand Name : SANROCK

Certification : CE ISO 9001:2015

Place of Origin : Zhejiang, China

MOQ : 1Set/Sets per Month

Max lifting force : 27.5KN

Hydraulic system rated pressure(Max. pressure) : 16Mpa

Tank capacity : 80L

After-sales service provided : Online support,Video technical support

Total weight : 900KG

Drill machine size : 3100*800*1250mm

Hydraulic station size : 1400*700*1200mm

Hole diameter : 90-160mm

Hole depth : 10-60m

Max torque : 3000N.m

Stroke : 1800mm

Hydraulic pump Max. flow : 40 L/min

Application : Mining Project,Coal,Ore,Water Well

Feature : Hydraulic Controlling,Light Weight High Drilling Efficiency

Control console size : 50*50*90mm

Model Number : SR90

Max feeding force : 27.5KN

Hydraulic pump type : 540 gear pump

Contact Now

DTH Drilling Rig Hard Rock Directional Drilling Machine Surface Blast Hole Drilling Rig Equipment

Portable DTH Drilling Rig with Hydraulic Controlling and Light Weight High Drilling Efficiency for Blast Hole Drilling

Operational Advantages

Minimal Footprint: Can operate in tunnels with limited headroom and width, causing no disruption to primary haulage or production activities
Rapid Setup/Redeployment: Modular design allows crews to move and set up the system in new locations within hours, maximizing productivity
Reduced Manual Labor: Integrated rod handlers and ergonomic controls minimize the physical strain on miners
Enhanced Safety Profile: Allows for critical ground reinforcement, drainage, or probing work to be performed from the safety of supported tunnels, avoiding exposure to unstable faces or hazardous zones

Summary: This 60-meter portable DTH drilling rig is a specialized engineering solution. It balances power, precision, and portability to perform essential drilling tasks for safety, stability, and infrastructure, all while adhering to the strictest standards of mine safety and operational efficiency.

Product Specifications

Type	Rotary Drilling Rig
Product Name	Drilling Rig
Applications	Building Energy, Mining, Borehole Drilling Rig

Air consumption: 9-12 m³/min
Hole diameter: 90-160 mm
Hole depth: 10-60 m
Drill rod size: 89×1500 mm / 76×1500 mm
Max torque: 3000 N.m
Rotation speed: 0-80 rpm
Thruster flip angle: 10° - 360°
Stroke: 1800 mm
Max lifting force: 27.5 KN
Max feeding force: 27.5 KN
Hydraulic pump type: 540 gear pump
Hydraulic system rated pressure (Max. pressure): 16 Mpa
Hydraulic pump Max. flow: 40 L/min
Motor rate: 15 kw
Tank capacity: 80 L
Drill machine size: 3100×800×1250 mm
Hydraulic station size: 1400×700×1200 mm
Control console size: 50×50×90 mm
Total weight: 900 KG

This is just a part of the overseas clients who came to our company to negotiate cooperation, sign contracts and take photos.

We welcome more overseas clients to come to our company for negotiation and cooperation.

Company Profile

What can you buy from us?

DTH drilling rig, core drilling rig, reverse circulation drilling rig, highway pile driver, solar pile driver, anchor pile driver, rotary drill rig, Top Hammer drill rig, underground jumbo drill rig, DTH hammer, drill rod, screw air compressor, water well drilling rig, truck mounted water well drilling rig, screw air compressor, piston air compressor, pneumatic rock drill, drill bit, tricone bit, spare parts.

Do you provide design drawing and customization services for complete machines and drilling tools?

Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements. This includes 2D and 3D design drawings, delivered in various formats including DWG, PDF, STEP, and IGES. Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.

How is the shipment? How long does it take?

For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

How is your quality control?

We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
