Multifunction Water Well Drilling Rig Hydraulic Bore hole Crawler Water Well Equipment

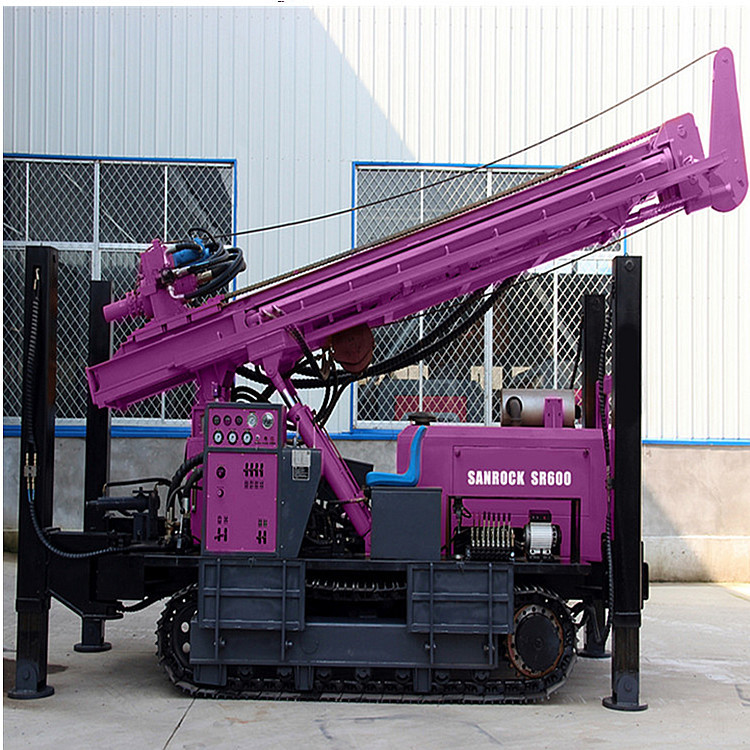

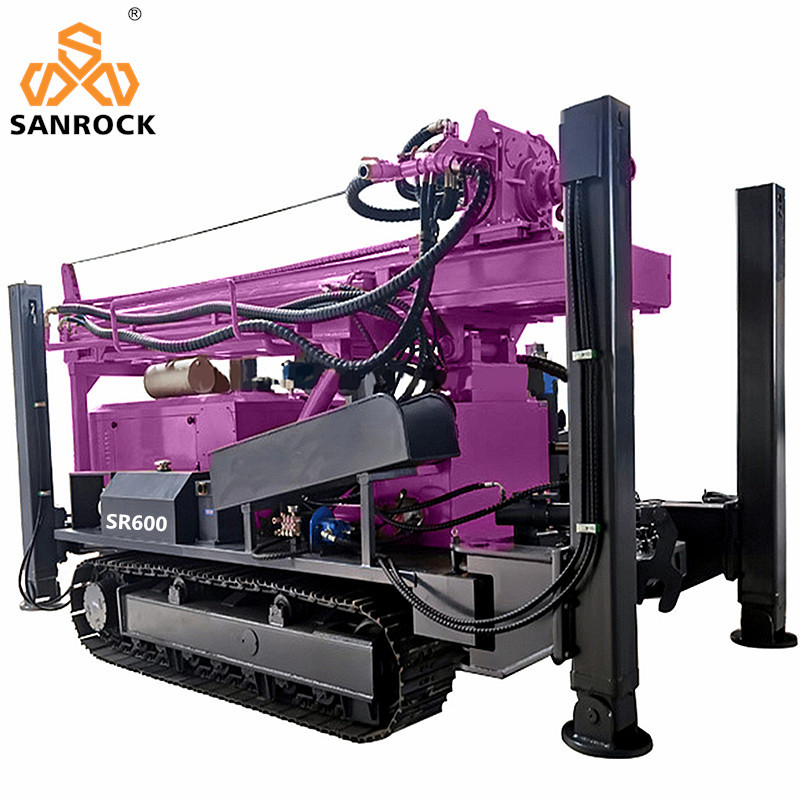

SR600 Crawler water well Drilling Rig it is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well, agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratum water sourcing project.
Products Description
| Product Name:crawler drilling machine water | | Name:SR600 | | Brand Name:Sanrock | | The hole diameter:140-350mm | | Drilling depth:600m | | Equipped capacitor:132KW | | Using air pressure:1.7-3.5MPA | | Air consumption:17-42m3/min | | Swing speed:45-115rpm | | Swing torque:8500-11000N.m | | One-time advance length:6.6m | | Drill pipe diameter:102mm /108 mm/114mm | | Walking speed:2.5km/h | | Dimension:6200×2200×2950mm | | The weight:12000KG | | |
1. The chassis of the drilling rig adopts a professional walking motor with a reduction box, which has a longer life.
2. The gearbox is cast in one piece, with dual motors providing stronger power, larger torque, more durable, and low maintenance costs.
3. The use of professional excavator chassis, strong and durable, large load-bearing, wide chain plate, little damage to hard roads.
4. Each hydraulic oil pipe is covered with a thick protective jacket to make the service life of the oil pipe longer.
5. The water well drilling rig rig uses dual oil pumps for oil supply. A single pump is used for drilling, and a double pump is used for confluence when lifting. The power loss is small and the auxiliary time is short.
6.The drilling rig machine has structure and reasonable layout, which is convenient for maintenance, maintenance and repair.
Company Profile
1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
